Bardzo dokładny pomiar temperatury przez multimetr stacjonarny RIGOL DM3068

from fileinput import filename
from pathlib import Path
import time
from xml.dom.expatbuilder import TEXT_NODE
import numpy as np
import pandas as pd
import logging
import pyvisa
import matplotlib.pyplot as plt
#from keithley2600 import Keithley2600, ResultTable
#import serial
import sys
import os
from datetime import datetime
import msvcrt
from matplotlib.ticker import EngFormatter
import re

import warnings
warnings.simplefilter(action='ignore', category=FutureWarning)
class StreamToLogger(object):
    """
    Fake file-like stream object that redirects writes to a logger instance.
    """
    def __init__(self, logger, level):
       self.logger = logger
       self.level = level
       self.linebuf = ''

    def write(self, buf):
       for line in buf.rstrip().splitlines():
          self.logger.log(self.level, line.rstrip())

    def flush(self):
        pass

dir = os.path.dirname(os.path.abspath(__file__))

ln = dir + '\\' + Path(__file__).stem + '.log'

lf = '%(asctime)s:%(name)s:%(levelname)s:  %(message)s'
logging.basicConfig(level=logging.INFO, format=lf, filename=ln);
consola = logging.StreamHandler()
consola.setFormatter(logging.Formatter(lf))
logging.getLogger('').addHandler(consola)

sys.stderr = StreamToLogger(logging.getLogger(''),logging.ERROR)

formatter_eng = EngFormatter(sep="", places=1)

logging.info("Start")

rig = None

def InitDevice():
    global rig
    try:

        rm = pyvisa.ResourceManager()
        for rr in rm.list_resources():
            print(rr)

        # do odczytu temperatury PT100 tylko DM3068. ..58 nie działa :READ?
        #rig = rm.open_resource('TCPIP0::192.168.0.214::inst0::INSTR') #
        rig = rm.open_resource('USB0::0x1AB1::0x0C94::DM3O201300270::INSTR')


        logging.info("Połączyłem się z RIGOLEM ")
        #print("Ustawiono RIGOL na ", rig.query("*IDN?"))
    except:
        raise Exception("Nie mogłem połączyć się z RIGOLEM")


def odczyt_temp_rig():
    global rig
    ts = rig.query(":READ?") # spacja przed :READ błąd w firmware
    #print('>>>>>',ts)
    ts=re.sub("#\w*","",ts) # dla cmd Agilent jest przedrostek #xxxxx który trzeba usunąć.
    #print(ts)
    t = float(ts)
    return(t)




fig = None

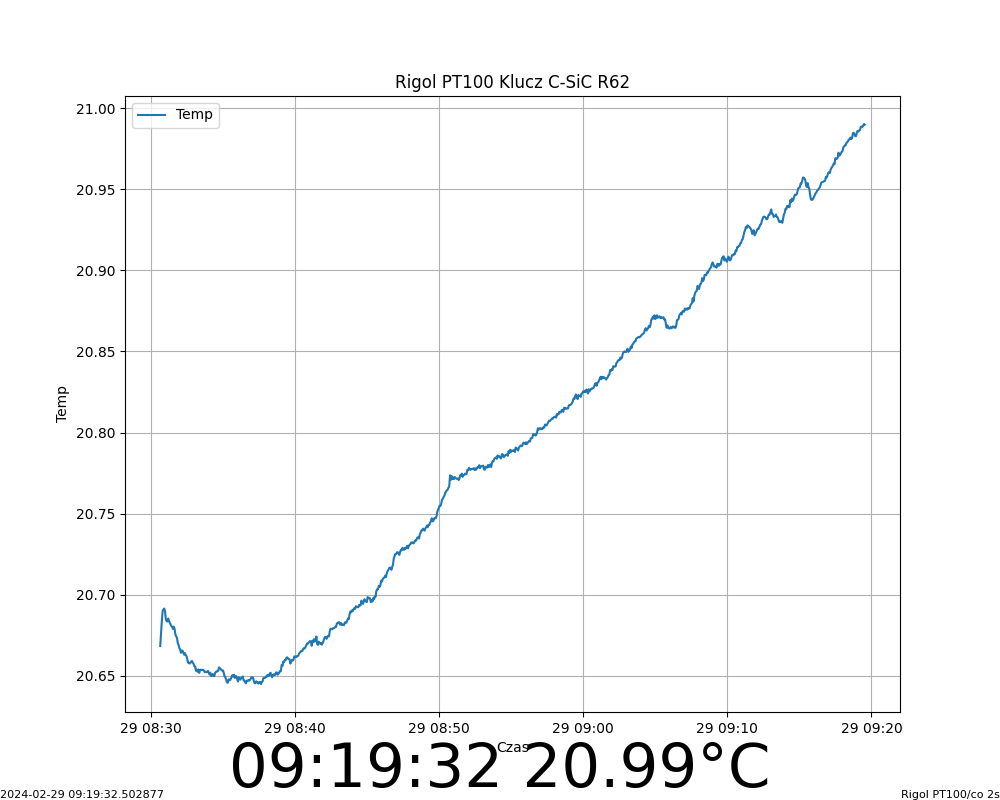

def Graf():
    global fig
    global ax1
    global df
    if fig == None:
        fig, ax = plt.subplots(figsize=(10, 8))
    else:
        plt.cla()
        fig.texts.clear()
    if not(df.empty):
        if len(df.columns)>1:
            l = df.columns
        else:
            l = df.columns[0]
        plt.plot(df, label = l)
    title = f'{prefix} {pomiar}'

    plt.xlabel("Czas")
    plt.ylabel("Temp")
    plt.grid()
    plt.title(title)
    h, l = fig.gca().get_legend_handles_labels()
    plt.legend(reversed(h), reversed(l), loc = 'upper left') #plt.legend()
    fig.text(1, 0, "{}/{}".format(prefix,sufix), fontsize=8, ha='right',  va='bottom', wrap=False)
    fig.text(0, 0, datetime.now(), fontsize=8, ha='left',  va='bottom', wrap=False)
    dts = datetime.now().strftime("%H:%M:%S")
    tt = round(t,2)
    fig.text(0.5, 0, f'{dts} {tt}°C {licznik}', fontsize=44, ha='center',  va='bottom', wrap=False)
    dts = datetime.now().strftime("%H:%M:%S")
    fig.canvas.manager.set_window_title(title)
    plt.draw()
    plt.pause(1)

pomiar_co = 1  #sec

prefix = "Rigol PT100"

pomiar = "przet C-SiC R62"

pomiar ='kala'
sufix = f"co {pomiar_co}s"

InitDevice()

t = odczyt_temp_rig()

d = {'Temp': pd.Series(t, index=[pd.Timestamp.now()])}
df = pd.DataFrame()
licznik = 0
logging.info("Zaczynam {}".format(pomiar))
while True:
    plt.pause(pomiar_co)
    t = odczyt_temp_rig()
    d = pd.DataFrame({'Temp': pd.Series(t, index=[pd.Timestamp.now()])})
    if not(df.empty):
        #df = df.append(pd.DataFrame(d))
        df = pd.concat([df,d])
    else:
        df = d.copy()
        df.index.name = 'Czas'
    Graf()
    dts = datetime.now().strftime("%y%m%d-%H")
    #n = f"{dir}\dane\{prefix}-{pomiar}-{dts}-{sufix}-{licznik}"
    n = f"{dir}\dane\{prefix}-{pomiar}-{dts}-{sufix}"
    fig.savefig(n+'.png')
 #   fig.savefig(n+'.pdf')
    df.to_csv(n+'.csv', sep = ';', decimal = '.', index=True)
    licznik +=1

logging.info("Koniec")
plt.show()
